Optimization

NRV includes an integrated optimization layer, enabling direct tuning of input parameters to optimize the outcomes of simulations.

Optimization Problem

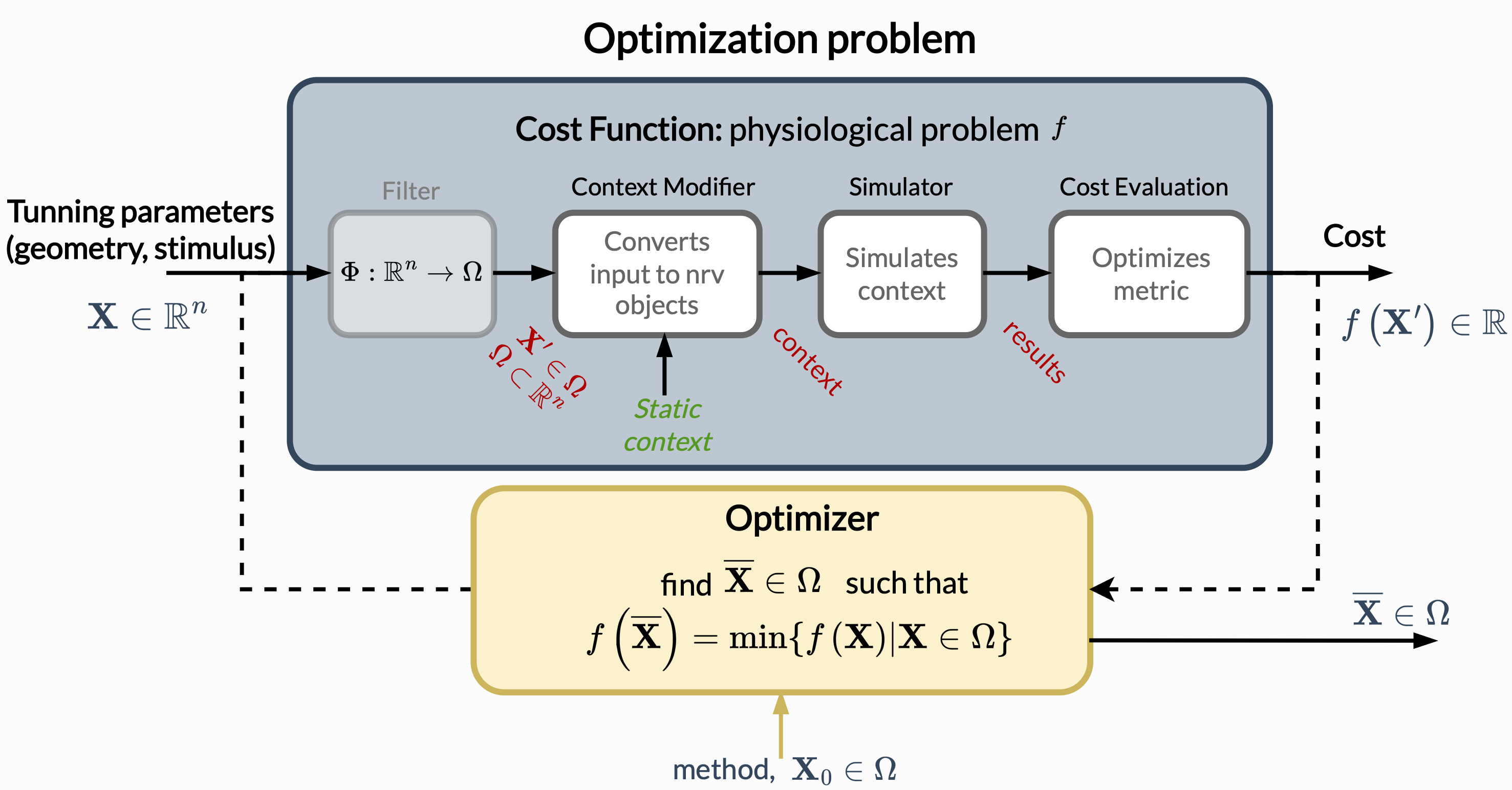

In NRV, an optimization problem consists of two main components:

An optimizer: based on algorithms from third-party libraries such as scipy and pyswarms.
A cost function: a function \(\mathbb{R}^n \rightarrow \mathbb{R}\) to be minimized.

To evaluate how specific parameters affect simulations and overall cost, NRV defines a nrv.optim.cost_function class composed of:

A filter (optional): a Python callable for vector formatting or dimensionality reduction.
A static context: an NRV simulable object (axon, fascicle, or nerve) used as the simulation base.
A context modifier: generates a modified local context from the static context and input vector.
A cost evaluation: evaluates simulation results to compute a scalar cost. This is a generic, user-definable callable.
A saver (optional): stores intermediate parameters or results during optimization.

The optimization problem is managed in NRV using the Problem class. A typical setup looks like:

import nrv
my_prob = nrv.Problem()
my_prob.costfunction = my_cost
my_prob.optimizer = my_optimizer

Once defined, the problem can be executed by calling the instance:

res_optim = my_prob(**kwargs)

Note

Additional keyword arguments (kwargs) can be passed to override optimizer parameters at runtime.

Tip

Parallel execution is fully supported by Problem and cost_function. Optimization involving nerve or fascicle contexts can be parallelized. See the Parallel Computation Guide for more details.

Cost Function

The first component of an optimization problem is the cost function. NRV provides the cost_function class, enabling users to customize cost functions using three main components:

A static context
A context modifier
A cost evaluation

You can instantiate the cost function directly:

my_cost = nrv.cost_function(
    static_context=my_static_context,
    context_modifier=my_context_modifier,
    cost_evaluation=my_cost_evaluation,
    kwargs_S=kwarg_sim,
    kwargs_CM=kwarg_cm,
    kwargs_CE=kwarg_ce
)

Or define it incrementally:

my_cost = nrv.cost_function()
my_cost.set_static_context(my_static_context, **kwarg_sim)
my_cost.set_context_modifier(my_context_modifier, **kwarg_cm)
my_cost.set_cost_evaluation(my_cost_evaluation, **kwarg_ce)

Warning

cost_function cannot currently be saved using the save method due to the custom nature of the cost_evaluation component. This feature is planned for a future release.

Context Modifier

Context modifiers are callable objects that modify the static context based on the input vector. They may change stimulation parameters, electrode configurations, or other simulation features.

NRV includes several built-in context modifiers, all inheriting from context_modifier.

**Built-in Context Modifiers**
Name	Description	See Also
`stimulus_CM`	Modifies electrode stimulus using interpolation or waveform generation from input vectors.	o02, T5
`biphasic_stimulus_CM`	Specializes stimulus_CM to configure biphasic pulses using user inputs.	o03, T5
`harmonic_stimulus_CM`	Specializes stimulus_CM to configure harmonic pulses.	o04

You can also define your own modifier:

def homemade_context_modifier(X: np.ndarray, static_context: NRV_simulable, **kwargs) -> NRV_simulable:
    local_sim = nrv.load_any(static_context, ...)
    # Modify local_sim based on X
    return local_sim

Note

Custom context modifier classes should implement the __call__ method with the structure shown above.

Cost Evaluation

Cost evaluations compute a scalar metric from simulation results. These are also callable and typically subclass cost_evaluation.

Benefits of subclassing:

Supports algebraic composition of multiple evaluations.
Integrates cleanly with NRV’s optimization framework.

**Built-in Cost Evaluations**
Name	Description
`raster_count_CE`	Counts spikes per fiber during simulation.
`recrutement_count_CE`	Counts activated or non-activated fibers.
`charge_quantity_CE`	Estimates charge injected by one or more electrodes.
`stim_energy_CE`	Estimates energy injected during stimulation.

Warning

cost_evaluation and its subclasses currently cannot be saved using the save method.

You can define a custom evaluation:

def homemade_cost_evaluation(results: sim_results, **kwargs) -> float:
    # Analyze `results` and return scalar cost
    return cost

Or define a class:

class homemade_cost_evaluation(nrv.cost_evaluation):
    def call_method(self, results: sim_results, **kwargs) -> float:
        return cost

Alternatively:

def __call__(self, results: sim_results, **kwargs) -> float:
    return cost

Filter (optional)

Filters format the input vector before it is passed to the context modifier.

my_cost = nrv.cost_function(
    static_context=my_static_context,
    ...,
    filters=my_filter
)

Warning

Filters are not recommended and may be deprecated in future versions. Consider integrating input formatting into the context modifier instead.

Optimizer

The second major component is the optimizer, which defines how to minimize the cost function. NRV provides two built-in optimizers, both subclasses of Optimizer.

You can use either of the following styles:

res = my_optimizer.minimize(func_to_minimize, ...)
# or simply
res = my_optimizer(func_to_minimize, ...)

**Available Optimizers**
Name	Description
`scipy_optimizer`	Interface to scipy.optimize.minimize.
`PSO_optimizer`	Particle Swarm Optimizer using Pyswarms.

Tip

Choose your optimizer based on problem type:

Use scipy_optimizer for continuous problems.
Use PSO_optimizer for discontinuous problems

Warning

Pyswarms support may be replaced by scikit-opt in future versions of NRV.
