Tutorial 1 - First steps into NRV: a simple axon

Context

The presence of the myelin sheath on large axonal fibers transforms the so-called continuous conduction of unmyelinated fibers into a saltatory conduction, largely increasing the speed of action potential propagations. In this tutorial, we will simulated several myelinated and unmyelinated fiber model using NRV and investigate how it effects the action potential propagation speed.

First the nrv package is imported as well as the matplotlib package used for plotting nrv’s simulation outputs.

import nrv
import matplotlib.pyplot as plt
import numpy as np

Intracellular stimulation of an unmyelinated axon

Unmyelinated fiber (y,z) coordinates, diameter, length, and computationnal model are defined at the creation of an unmyelinated object. The default computationnal model uses the Rattay_Aberham model (Rattay and Aberham, 1993). Others available models are the HH model (Hodgkin and Huxley, 1952), the Sundt model (Sundt et al. 2015), the Tigerholm model (Tigerholm et al. 2014), the Schild_94 model (Schild et al. 1994) and the Schild_97 model (Schild et al. 1997).

## Axon def
y = 0  # axon y position, in [µm]
z = 0  # axon z position, in [µm]
d = 1  # axon diameter position, in [µm]
L = 5000  # axon length along x, in [µm]
model = "HH"  # Rattay_Aberham if not precised
axon_u = nrv.unmyelinated(y, z, d, L, model=model)

The axon is stimulated by an intracellular current stimulus via the insert_I_Clamp method of the unmyelinated class. The stimulus is parameterized with its duration and amplitude, and its position along the fiber’s x axis. The stimulus start time is also defined.

## intracellular current pulse (ICP)
t_start = 1  # ICP time during the sim, in [ms]
duration = 0.1  # ICP duration, in [ms]
amplitude = 5  # ICP amplitude, in [nA]
x_start = 0  # ICP initial postition along the axon, in [µs]
axon_u.insert_I_Clamp(x_start, t_start, duration, amplitude)

Last, the unmeylinated fiber membrane’s voltage is solved during t_sim ms using the simulate method of the unmyelinated class. the axon_u object is a callable object which will automatically called the simulate method of the unmyelinated class when called. Results are stored in the results variable over in the form of a dictionnary.

## Simulation
t_sim = 20  # sim duration, in [ms]
## results = axon_u.simulate(t_sim=t_sim)
results = axon_u(t_sim=t_sim)

Each key of the results dictionnary are also a member of the results object.

vmem = results["V_mem"]
vmem = results.V_mem #equivalent

Simulation results plots

Now we can use matplotlib to easily visualize some simulation results contained in the results dictionnary.

x_idx_mid = len(results["V_mem"]) // 2 #get the mid-fiber x-index position
fig, ax = plt.subplots()
ax.plot(results["t"], results["V_mem"][x_idx_mid], color="darkcyan")
ax.set_xlabel('Times (ms)')
ax.set_ylabel('Membrane voltage $V_{mem} (mV)$')
fig.tight_layout()

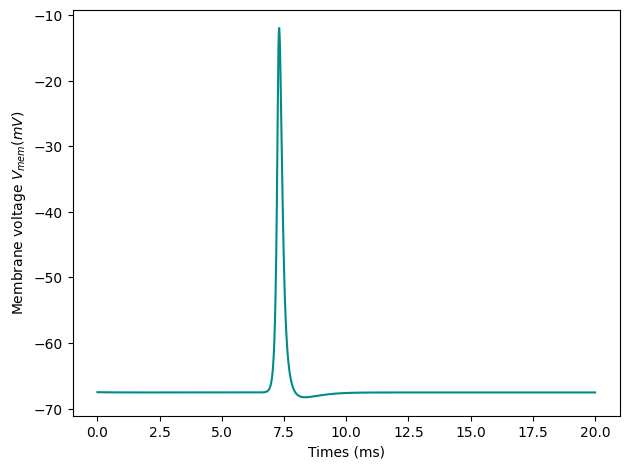

The plot above shows a momentary voltage increase (a spike) across \(V_{mem}\).

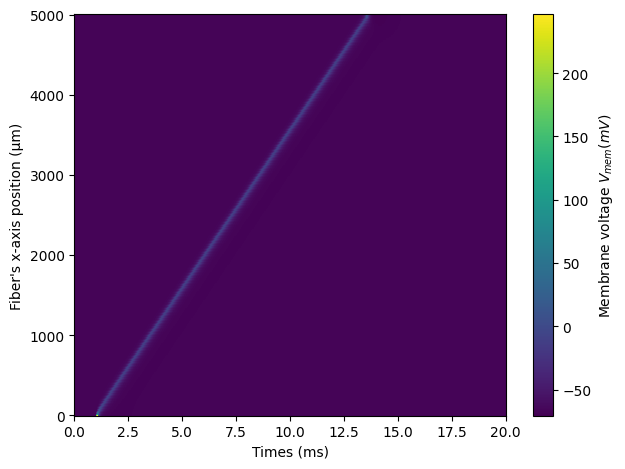

The simulated fiber’s membrane voltage \(V_{mem}\) is a 3-D variable: voltage is solved across the fiber’s x-axis (x_rec in results) and across time. The 3-D result can be visualized with a color map. This can simply be obtained with the colormap_plot method of the results object:

fig, ax = plt.subplots(1)
cbar = results.colormap_plot(ax, "V_mem")
ax.set_xlabel('Time (ms)')
ax.set_ylabel('x-position (µm)')
cbar.set_label(r'Membrane Voltage $V_{mem}$ (mV)')
fig.tight_layout()

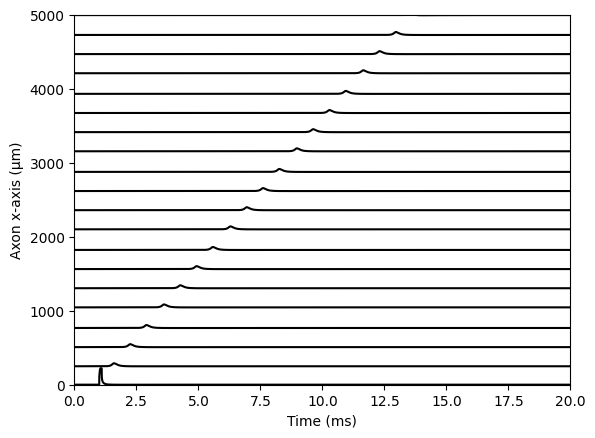

We can also use the plot_x_t method of results to plot \(V_{mem}\) across time and space. The function plot the evolution of \(V_{mem}\) across time for a subset of x position (20 by default):

fig, ax = plt.subplots(1)
results.plot_x_t(ax,'V_mem')
ax.set_ylabel("Axon x-axis (µm)")
ax.set_xlabel("Time (ms)")
ax.set_xlim(0,results.tstop)
ax.set_ylim(0,np.max(results.x_rec))

The color plot shows that the voltage spike across the fiber’s voltage propagates from one end of the fiber (\(x = 0\mu m\), where the current clamp is attached to the fiber) to the other end of the fiber (\(x = 5000\mu m\)). The generates voltage spikes propagates across the fiber: it is an action potential (AP)! The AP took approximately \(12 ms\) to travel across the fiber \(5000\mu m\) fiber. The propagation velocity of the AP is thus about \(0.4m/s\). This property is referred to as the conduction velocity of a fiber.

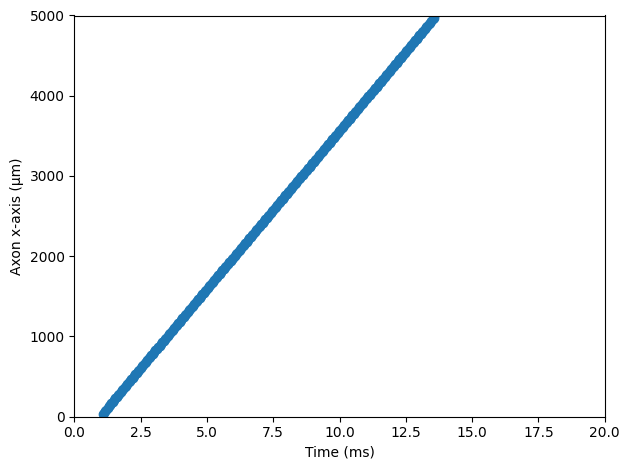

In many situations, we want to detect if whether an AP is going through the fiber. For that, the rasterize method of the results object. The method detected the presence of AP in the fiber across time and space using a threshold function. The results can be plotted with the raster_plot method of results.

# Raster plot
results.rasterize("V_mem")
fig, ax = plt.subplots(1)
results.raster_plot(ax,'V_mem')
ax.set_ylabel("Axon x-axis (µm)")
ax.set_xlabel("Time (ms)")
ax.set_xlim(0,results.tstop)
ax.set_ylim(0,np.max(results.x_rec))
fig.tight_layout()

Intracellular stimulation of an myelinated axon

Analogous simulations can be done using this time a myelinated fiber. Similary to unmyelinated fiber, myelinated fiber are defined with (y,z) coordinates, diameter, length, and computationnal model at the creation of an myelinated object. The default computationnal model uses the MRG model (McIntyre et al., 2002). Others available models are the Gaines_sensory and Gaines_motor models (Gaines et al., 2018).

It is sometime conveniente to specify a number of Node-of-Ranvier (NoRs) for the simulation instead of a length. Converting the number of NoRs into fiber length can be done with the NRV function get_length_from_nodes.

By default, the membrane potential is only recorded at the NoR of the fiber (rec = nodes). The membrane potential can be recorded at all computation points (NoR and myelin) by setting rec = all.

## Axon def
y = 0 # axon y position, in [µm]
z = 0 # axon z position, in [µm]
d = 10 # axon diameter position, in [µm]
n_NoR = 20 #number of Node-of-Ranvier
L = nrv.get_length_from_nodes(d, n_NoR)
model = "MRG" #myelinated fiber model, MRG by default

axon_m = nrv.myelinated(y, z, d, L, model=model,rec='all')

Attaching an intracelullar clamp is similar, but the position of the clamp on the fiber is defined by a NoR number instead of an absolute \(x-position\). Here the clamp is attached to the first NoR of fiber, i.e. the closest NoR to \(x = 0\mu m\).

## test pulse
t_start = 1
duration = 0.1
amplitude = 5
clamp_node = 0
axon_m.insert_I_Clamp(clamp_node, t_start, duration, amplitude)

## Simulation
t_sim = 3
results_m = axon_m(t_sim=t_sim)

Results can be plotted the same way we did for the unmyelinated fiber:

# Color Map
fig, ax = plt.subplots(1)
cbar = results_m.colormap_plot(ax, "V_mem")
ax.set_xlabel('Time (ms)')
ax.set_ylabel('x-position (µm)')
cbar.set_label(r'Membrane Voltage $V_{mem}$ (mV)')
fig.tight_layout()

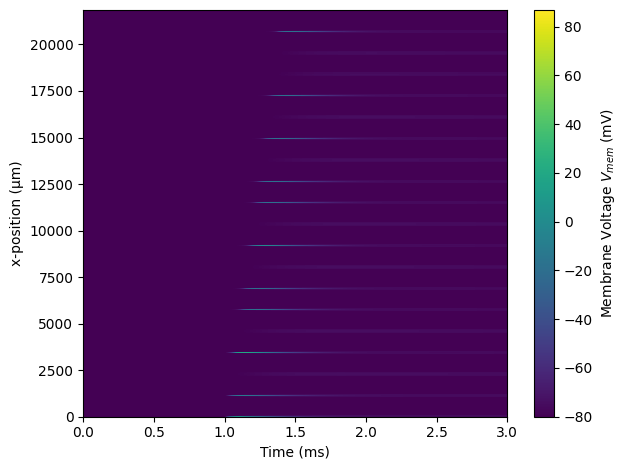

The AP propagation is also visible but “jumps” from one NoR to the other. This is called the saltatory conduction by opposition to the continuous conduction of the unmyelinated fibers.

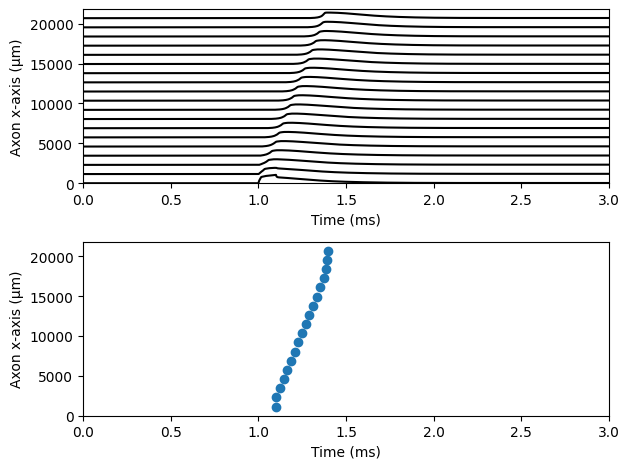

Using the rasterize function of NRV (figure below) we see that the AP is only detected at the NoR of the fiber.

results_m.rasterize("V_mem")
fig, axs = plt.subplots(2)

results_m.plot_x_t(axs[0],'V_mem')
axs[0].set_ylabel("Axon x-axis (µm)")
axs[0].set_xlabel("Time (ms)")
axs[0].set_xlim(0,results_m.tstop)
axs[0].set_ylim(0,np.max(results_m.x_rec))

results_m.raster_plot(axs[1],'V_mem')
axs[1].set_ylabel("Axon x-axis (µm)")
axs[1].set_xlabel("Time (ms)")
axs[1].set_xlim(0,results_m.tstop)
axs[1].set_ylim(0,np.max(results_m.x_rec))

fig.tight_layout()
