Intracellular stimulation of axon subpopulations

Example of use of subpopulation for axon species targeted current clamp.

This example shows:

• Creating a nerve with fascicles of various geometries.

• Filling fascicles with axon populations.

• Selecting subpopulations using expressions or masks.

• Applying IClamp to specific subpopulations.

• Running a simulation and plotting recruited fibers.

See also

• Simulable, Axon population and Geometry Users’ guides.

• Tutorial 4

import nrv
import numpy as np
import matplotlib.pyplot as plt

if __name__ == '__main__':
    # --- Nerve and Fascicle Setup ---
    ner = nrv.nerve(length=5000, diameter=500, Outer_D=5)

    # Fascicle 1: Circle
    fasc1 = nrv.fascicle(diameter=200, ID=1)
    fasc1_y, fasc1_z = -100, -60
    ner.add_fascicle(fasc1, y=fasc1_y, z=fasc1_z)

    # Fascicle 2: Ellipse
    fasc2 = nrv.fascicle(ID=2)
    fasc2.set_geometry(diameter=(120, 60), rot=30, degree=True)
    fasc2_y, fasc2_z = 100, -70
    ner.add_fascicle(fasc2, y=fasc2_y, z=fasc2_z)

    # Fascicle 3: Polygon
    vertices = [(-80, 130), (0, 180), (80, 130), (50, 30), (0, -30), (-50, 30)]
    fasc3 = nrv.fascicle(ID=3)
    fasc3.set_geometry(geometry=nrv.create_cshape(vertices=vertices))
    fasc3_y, fasc3_z = 0, 100
    ner.add_fascicle(fasc3, y=fasc3_y, z=fasc3_z, rot=-np.pi/6)

    # --- Fill fascicles with axon populations ---
    n_ax = 200
    for fasc in ner.fascicles.values():
        fasc.fill(n_ax=n_ax, percent_unmyel=0.7, delta=2)

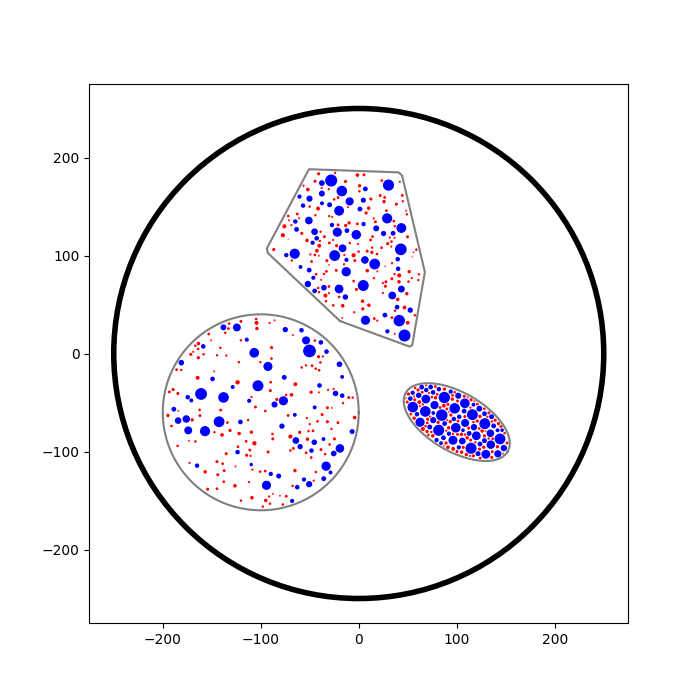

    # --- Plot nerve ---
    fig, ax = plt.subplots(figsize=(7, 7))
    ner.plot(ax)

    # --- Select subpopulations and apply IClamp ---
    # Example: stimulate only large-diameter axons in fascicle 1, and only unmyelinated in fascicle 3
    i_pos = 0.5
    i_start = 0.2
    i_dur = 0.5
    i_amp = 2.0

    # For fascicle 1: select axons with diameter > 8 um
    expr_large = "diameters > 8"
    fasc1.insert_I_Clamp(
        position=i_pos,  # middle of axon
        t_start=i_start,
        duration=i_dur,
        amplitude=i_amp,  # nA
        expr=expr_large
    )

    # For fascicle 2: select unmyelinated axons
    expr_local = f"(y-{fasc2_y})**2 + (z-{fasc2_z})**2 < 25**2"
    mask_local = fasc2.axons.get_mask(expr=expr_local, otype="list")
    fasc2.insert_I_Clamp(
        position=i_pos,
        t_start=i_start,
        duration=i_dur,
        amplitude=i_amp,
        ax_list=mask_local,
    )

    # For fascicle 3: stimulate only large unmyelinated axons
    expr_unmyel = "types == 0"
    fasc2.axons.add_mask(data=expr_unmyel, label="umyel")
    expr_ularge = "diameters > 1"
    mask_u = fasc2.axons.add_mask(data=expr_ularge, label="ularge")

    fasc3.insert_I_Clamp(
        position=i_pos,
        t_start=i_start,
        duration=i_dur,
        amplitude=i_amp,
        mask_labels=["umyel", "ularge"],
    )

    # --- Run simulation ---
    results = ner.simulate(t_sim=2, postproc_script="is_recruited")

Placing... ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00
Placing... ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:01
Placing... ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00
fascicle 1/3 -- 3 CPUs: 200 / 200 ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00 0:00:27
fascicle 2/3 -- 3 CPUs: 155 / 155 ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00 0:00:23
fascicle 3/3 -- 3 CPUs: 200 / 200 ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00 0:00:25

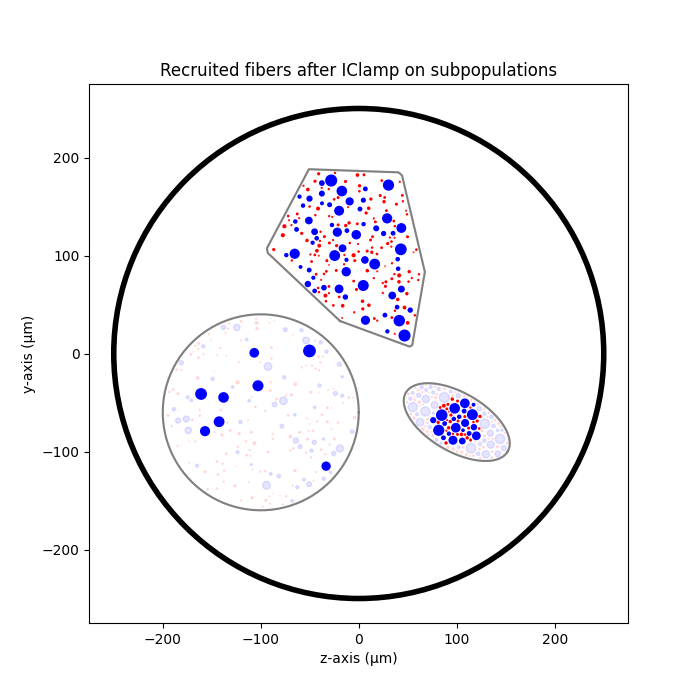

Plot recruited fibers

if __name__ == '__main__':
    fig, ax = plt.subplots(figsize=(7, 7))
    results.plot_recruited_fibers(ax)
    ax.set_xlabel("z-axis (µm)")
    ax.set_ylabel("y-axis (µm)")
    ax.set_title("Recruited fibers after IClamp on subpopulations")
    plt.show()
