KES propagation Block of unmyelinated fiber

This file shows an example of action potential propagation block with an unmyelinated fiber.

import nrv
import numpy as np
import matplotlib.pyplot as plt


model = 'Tigerholm'
diam = 1
y = 0
z = 0
print(diam)

L = 10000

t_sim = 50
t_position=0.05
t_start=20
t_duration=1
t_amplitude=1

b_start = 3
b_duration = t_sim
block_amp = 20000
block_freq = 10
dt = 1/(20*block_freq)
nseg_per_l = 50
n_seg = np.int32(nseg_per_l*L/1000)
print(n_seg)
material = nrv.load_material('endoneurium_bhadra')

y_elec = 500
z_elec = 0
x_elec = L/2

axon1 = nrv.unmyelinated(y,z,diam,L,model=model,Nseg_per_sec=n_seg,dt=dt)


E1 = nrv.point_source_electrode(x_elec,y_elec,z_elec)
stim_1=nrv.stimulus()
stim_1.sinus(b_start, b_duration, block_amp, block_freq ,dt=1/(block_freq*20))
stim_extra = nrv.stimulation(material)
stim_extra.add_electrode(E1,stim_1)
axon1.attach_extracellular_stimulation(stim_extra)

axon1.insert_I_Clamp(t_position, t_start, t_duration, t_amplitude)


# simulate axon activity
results = axon1.simulate(t_sim=t_sim)
results.filter_freq('V_mem',block_freq)
results.rasterize('V_mem_filtered')

print(results.count_APs("V_mem_filtered"))

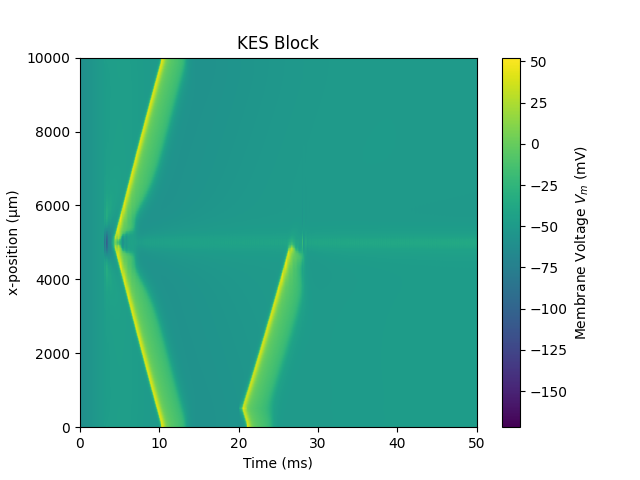

fig, ax = plt.subplots(1)
cbar = results.colormap_plot(ax, "V_mem_filtered")
ax.set_xlabel('Time (ms)')
ax.set_ylabel('x-position (µm)')
ax.set_title('KES Block')
cbar.set_label(r'Membrane Voltage $V_m$ (mV)')

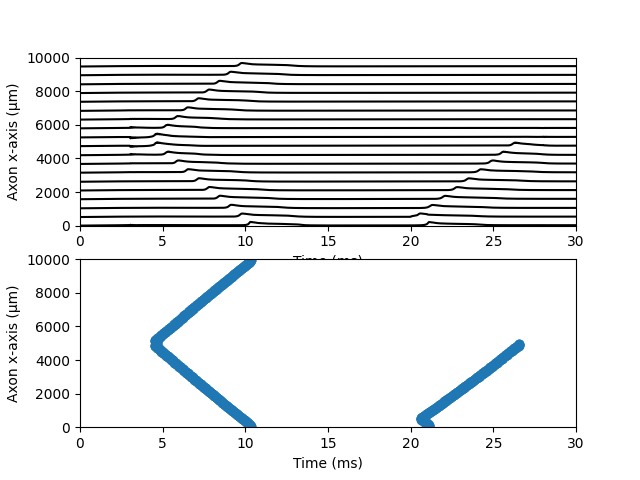

fig, axs = plt.subplots(2)
results.plot_x_t(axs[0],'V_mem_filtered')
axs[0].set_ylabel("Axon x-axis (µm)")
axs[0].set_xlabel("Time (ms)")
axs[0].set_xlim(0,30)
axs[0].set_ylim(0,np.max(results.x_rec))

results.raster_plot(axs[1],'V_mem_filtered')
axs[1].set_ylabel("Axon x-axis (µm)")
axs[1].set_xlabel("Time (ms)")
axs[1].set_xlim(0,30)
axs[1].set_ylim(0,np.max(results.x_rec))

#plt.show()

1
500
2
