Plotting available axon diameter distributions in NRV

This example shows how to plot available axon diameter distributions in NRV

import nrv
import matplotlib.pyplot as plt
import numpy as np

myelinated_stats = [
    "Schellens_1",
    "Schellens_2",
    "Ochoa_M",
    "Jacobs_9_A",
    "Jacobs_9_B",
    "Fugleholm",
]

unmyelinated_stats = [
    "Ochoa_U",
    "Jacobs_11_A",
    "Jacobs_11_B",
    "Jacobs_11_C",
    "Jacobs_11_D",
    "Jacobs_11_D",
]

N = 10000
fig_idxs= [(0,0),(0,1),(1,0),(1,1),(2,0),(2,1)]
xspace1 = np.linspace(1,20,num=500)

fig1, axs1 = plt.subplots(3, 2, figsize=(5, 5*1.33))
for k in range(len(myelinated_stats)):

    m_stat = myelinated_stats[k]
    u_stat = unmyelinated_stats[0]
    axons_diameters, axons_type, M_diam_list, U_diam_list = nrv.create_axon_population(N,M_stat=m_stat,U_stat=u_stat)

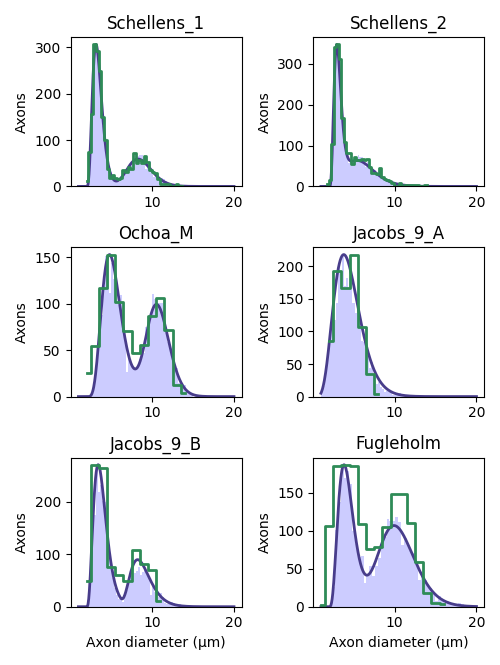

    y_M, x, _ = axs1[fig_idxs[k]].hist(M_diam_list,bins = 50,color = 'blue',alpha = 0.2)


    gen, popt1, pcov1 = nrv.create_generator_from_stat(m_stat)
    diam, pres = nrv.load_stat(m_stat)

    if (len(popt1)>4):
        data = (nrv.two_Gamma(xspace1, *popt1))
    else:
        data = (nrv.one_Gamma(xspace1, *popt1))
    scale_factor= np.max(y_M)
    data = data*scale_factor/np.max(data)
    pres = pres*scale_factor/np.max(pres)
    axs1[fig_idxs[k]].plot(xspace1,data,linewidth = 2,color ="darkslateblue")
    axs1[fig_idxs[k]].step(diam,pres,linewidth = 2,color ="seagreen",where="mid")

    axs1[fig_idxs[k]].set_title(m_stat)
    axs1[fig_idxs[k]].set_ylabel("Axons")

axs1[fig_idxs[-1]].set_xlabel("Axon diameter (µm)")
axs1[fig_idxs[-2]].set_xlabel("Axon diameter (µm)")
fig1.tight_layout()

NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated

fig1, axs1 = plt.subplots(3, 2, figsize=(5, 5*1.33))

xspace1 = np.linspace(0.1,4,num=500)
for k in range(len(unmyelinated_stats)):

    m_stat = myelinated_stats[0]
    u_stat = unmyelinated_stats[k]
    axons_diameters, axons_type, M_diam_list, U_diam_list = nrv.create_axon_population(N,M_stat=m_stat,U_stat=u_stat)

    y_U, x, _ = axs1[fig_idxs[k]].hist(U_diam_list,bins = 50,color = 'red',alpha = 0.2)

    gen, popt1, pcov1 = nrv.create_generator_from_stat(u_stat)#,dmin = 0.1,dmax=3)
    diam, pres = nrv.load_stat(u_stat)

    data = (nrv.one_Gamma(xspace1, *popt1))
    scale_factor= np.max(y_U)
    data = data*scale_factor/np.max(data)
    pres = pres*scale_factor/np.max(pres)
    axs1[fig_idxs[k]].plot(xspace1,data,linewidth = 2,color ="firebrick")
    axs1[fig_idxs[k]].step(diam,pres,linewidth = 2,color ="slategray",where="mid")
    axs1[fig_idxs[k]].set_title(u_stat)
    axs1[fig_idxs[k]].set_ylabel("Axons")

axs1[fig_idxs[-1]].set_xlabel("Axon diameter (µm)")
axs1[fig_idxs[-2]].set_xlabel("Axon diameter (µm)")
fig1.tight_layout()

NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
NRV INFO: On 10000 axons to generate, there are 3000 Myelinated and 7000 Unmyelinated
