Activation function with a cuff-like electrode

This script evaluates the activation function for a cuff-like electrode

import sys
sys.path.append("../../")

import nrv
import matplotlib.pyplot as plt
import numpy as np
from scipy import signal

def move_mean(A, N):
    A = signal.savgol_filter(A, N, 3)
    #A = np.convolve(A, np.ones(N)/N, mode='valid')
    return A

def derivate(A, n_order, N=99):
    for _ in range(n_order):
        A = np.diff(A)
        A = move_mean(A, N)
    return A


my_model = "Nerve_1_Fascicle_1_CUFF" #Optional, only if comsol is used

##### extracellular context
fem_mod = nrv.FEM_stimulation()                         #if fenicsx
#fem_mod = nrv.FEM_stimulation(model_fname=my_model)     #if comsol

### Simulation box size
Outer_D = 6 #in mm

#### Nerve and fascicle geometry
L = 10000               #in um
Nerve_D = 1000          #in um
Fascicle_D = 800        #in um

fem_mod.reshape_outerBox(Outer_D)
fem_mod.reshape_nerve(Nerve_D, L)
fem_mod.reshape_fascicle(Fascicle_D)

##### electrodes and stimuli definition
contact_length=500          #in um
contact_thickness=100       #in um
insulator_length=1000       #in um
insulator_thickness=500     #in um
x_center = L/2

cuff = nrv.CUFF_electrode('CUFF_1', contact_length=contact_length,\
    contact_thickness=contact_thickness, insulator_length=insulator_length,\
    insulator_thickness=insulator_thickness, x_center=x_center)

# stimulus def
start = 1
I_cathod = 500
I_anod = I_cathod/5
T_cathod = 60e-3
T_inter = 40e-3
stim1 = nrv.stimulus()
stim1.biphasic_pulse(start, I_cathod, T_cathod, I_anod, T_inter)

#attach stim and electrode to the FEM model
fem_mod.add_electrode(cuff, stim1)

##### compute footprints
x = np.linspace(0,L,num=1000)
y = 0
z = 0

fem_mod.compute_electrodes_footprints(x, y, z, ID=0)
ftp = cuff.footprint
acti_function = derivate(ftp, 2)
acti_function = acti_function/np.max(acti_function)

fig,ax = plt.subplots(1)
x_plot = np.linspace(0,L, len(acti_function))
ax.plot(x_plot, acti_function)

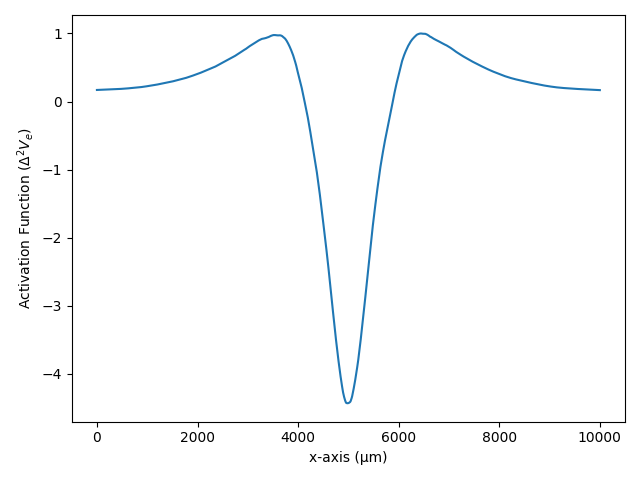

ax.set_ylabel(r'Activation Function ($\Delta^2V_e$)')
ax.set_xlabel('x-axis (µm)')
fig.tight_layout()

NRV INFO: Mesh properties:
NRV INFO: Number of processes : 3
NRV INFO: Number of entities : 61
NRV INFO: Number of nodes : 3871
NRV INFO: Number of elements : 27502
NRV INFO: Static/Quasi-Static electrical current problem
NRV INFO: FEN4NRV: setup the bilinear form
NRV INFO: FEN4NRV: setup the linear form
NRV INFO: Static/Quasi-Static electrical current problem
NRV INFO: FEN4NRV: solving electrical potential
NRV INFO: FEN4NRV: solved in 1.6115992069244385 s
