Tutorial 2 - Evaluation of propagation velocity with NRV

Context

The presence of the myelin sheath on large axonal fibers transforms the so-called continuous conduction of unmyelinated fibers into a saltatory conduction, largely increasing the speed of action potential propagations. In this tutorial, we will simulated several myelinated and unmyelinated fiber model using NRV and investigate how it effects the action potential propagation speed.

First the nrv package is imported as well as the matplotlib package used for plotting nrv’s simulation outputs. We will also use some numpy’s function.

import nrv
import matplotlib.pyplot as plt
import numpy as np

Measuring Propagation Velocity of an unmyelinated fibers

First let’s create an unmyelinated object and specify the (y,z) coordinates, diameter, length, and computationnal model used. The HH model (Hodgkin and Huxley, 1952) is used here for the example.

y = 0                               # axon y position, in [um]
z = 0                               # axon z position, in [um]
d = 1                               # axon diameter, in [um]
L = 2000                            # axon length, along x axis, in [um]
model = "HH"
axon = nrv.unmyelinated(y, z, d, L, model=model)

The unmyelinated fiber is stimulated with an intracellular current clamp that is attach to the fiber using the insert_I_Clamp method. The generated AP will be used to measure the propagation speed.

## Intracellular stimulation definition
t_start = 1                 # starting time, in [ms]
duration = 0.1              # duration, in [ms]
amplitude = 5               # amplitude, in [nA]
axon.insert_I_Clamp(0, t_start, duration, amplitude)

Axon is simulated and the simulated membrane’s voltage is rasterize to facilate the spike detection. For that, the rasterize function of NRV can be used on the results dictionnary. The function detects the presence of AP in the fiber accross time and space using a threshold function.

t_sim = 10                  # simulation time, in [ms]
results = axon(t_sim=t_sim)
nrv.rasterize(results, "V_mem")

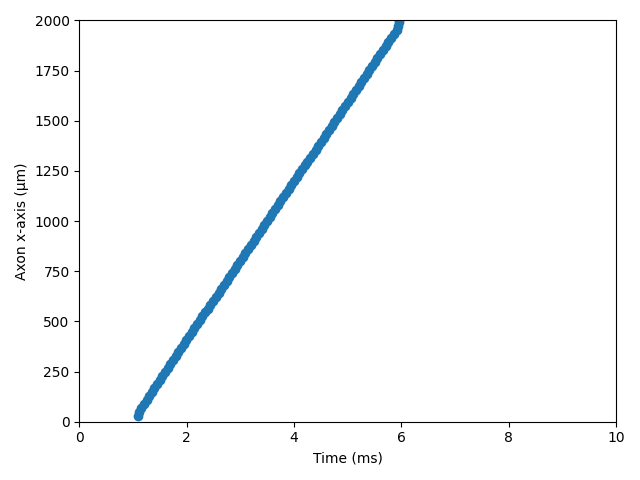

We can plot the rasterized result to verify that an AP is indeed propagating through the fiber.

plt.figure()
plt.grid()
plt.scatter(results["V_mem_raster_time"], results["V_mem_raster_x_position"],color = 'darkslateblue')
plt.xlabel('Times (ms)')
plt.ylabel('Axon x-axis $(\mu m)$')
plt.xlim(0, t_sim)
plt.ylim(0, results["L"])
plt.tight_layout()

The velocity of the propagating AP can be simply evaluated with the built-in NRV function speed applied to the results dictionnary.

unmyelinated_speed = nrv.speed(results)
unmyelinated_speed          #in m/s

0.4069457500620992

Measuring Propagation Velocity of a myelinated fibers

Those steps can be repeated but with a myelinated fiber model. Note that we defined a fixed number of nodes-of-ranvier and derived the length of the fiber from this number, rather than specifying its length directly.

## Axon creation
y = 0                                 # axon y position, in [um]
z = 0                                 # axon z position, in [um]
d = 10                                # axon diameter, in [um]
L = nrv.get_length_from_nodes(d, 21)  #Axon length is 21 node of Ranvier
model = "MRG"
axon = nrv.myelinated(y, z, d, L, model=model)

## test pulse
t_start = 1
duration = 0.1
amplitude = 5
axon.insert_I_Clamp(0, t_start, duration, amplitude)
t_sim = 5

## Simulation
results = axon(t_sim=t_sim)

nrv.rasterize(results, "V_mem")
myelinated_speed = nrv.speed(results, t_start=0)
myelinated_speed

58.111702127666014

As expected, the AP propagation is much faster in a large myelinated axon than small unmyelinated one!

Velocity-diameter relationship

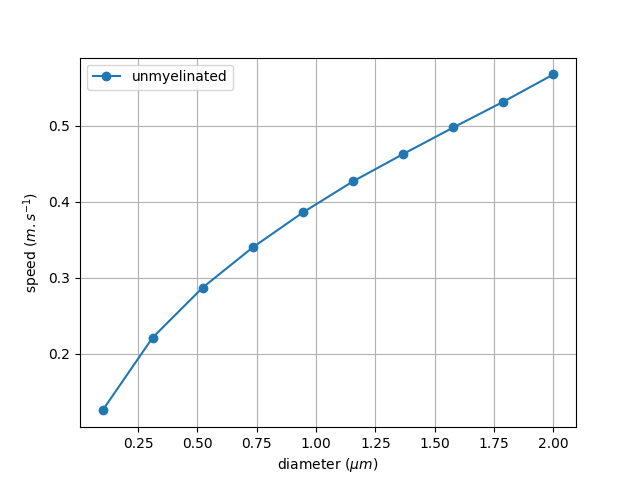

The velocity of AP propagation in a fiber increases with its diameter. Let’s verify this with NRV and plot the propagation velocity diameter relationship for unmyelinated fibers. This typically takes less than 1 minute to calculate.

unmyelinated_diameters = np.linspace(0.1, 2, 10)            #10 unmyelinated fibers with diameter ranging from 0.1µm to 2µm.
unmyelinated_speed = []                                     #Empty list to store results

## Axon fixed parameters
y = 0
z = 0
L = 5000
model = "HH"

## test pulse fixed parameters
t_start = 1
duration = 0.1
amplitude = 3

t_sim = 5
for d in unmyelinated_diameters:

    #Axon creation
    axon1 = nrv.unmyelinated(y, z, d, L, model=model)
    axon1.insert_I_Clamp(0, t_start, duration, amplitude)

    ## Simulation
    results = axon1(t_sim=t_sim)
    del axon1

    nrv.rasterize(results, "V_mem")
    unmyelinated_speed += [nrv.speed(results)]

#Plot the results
plt.figure()
plt.plot(unmyelinated_diameters, unmyelinated_speed, "o-", label="unmyelinated")
plt.legend()
plt.grid()
plt.xlabel("diameter ($\mu m$)")
plt.ylabel("speed ($m.s^{-1}$)")

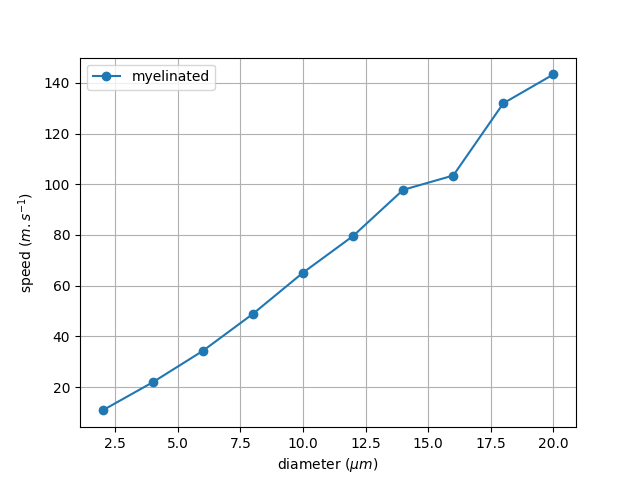

Let’s do the same thing but with myelinated fibers this time. Note that we need to update the fiber’s length at each new axon diameter as the node-of-ranvier distance increases with diameter.

myelinated_diameters = np.linspace(2, 20, 10)   #10 myelinated fibers with diameter ranging from 2µm to 20µm.
myelinated_speed = []

## Axon def
y = 0
z = 0
model = "MRG"

## test pulse
t_start = 1
duration = 0.1
amplitude = 5

t_sim = 5

for d in myelinated_diameters:
    L = nrv.get_length_from_nodes(d, 21)
    axon1 = nrv.myelinated(y, z, d, L, model=model)
    axon1.insert_I_Clamp(0, t_start, duration, amplitude)

    ## Simulation
    results = axon1(t_sim=t_sim)
    del axon1

    nrv.rasterize(results, "V_mem")
    myelinated_speed += [nrv.speed(results)]

plt.figure()
plt.plot(myelinated_diameters, myelinated_speed, "o-", label="myelinated")
plt.legend()
plt.grid()
plt.xlabel("diameter ($\mu m$)")
plt.ylabel("speed ($m.s^{-1}$)")

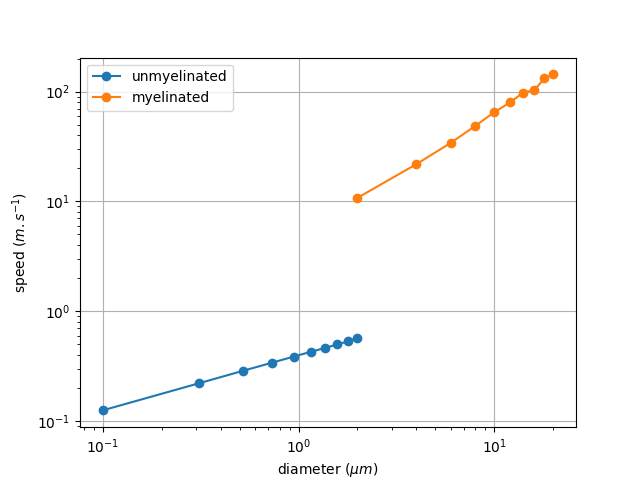

Myelinated and unmyelinated AP velocities can be plotted in the same figure (in log scale), clearly demonstrating the AP propagation speed gain provided by the axon’s myelin sheath.

plt.figure()
plt.plot(unmyelinated_diameters, unmyelinated_speed, "o-", label="unmyelinated")
plt.plot(myelinated_diameters, myelinated_speed, "o-", label="myelinated")
plt.legend()
plt.xscale("log")
plt.yscale("log")
plt.grid()
plt.xlabel("diameter ($\mu m$)")
plt.ylabel("speed ($m.s^{-1}$)")

Effect of model on Velocity-diameter relationship

The user can choose between several unmyelinated and myelinated computationnal models commonly found in the literature. Available unmyelinated model are the Rattay_Aberham model (Rattay and Aberham, 1993), the HH model (Hodgkin and Huxley, 1952), the Sundt model (Sundt et al. 2015), the Tigerholm model (Tigerholm et al. 2014), the Schild_94 model (Schild et al. 1994) and the Schild_97 model (Schild et al. 1997). For myelinated fibers, available myelinated models are the MRG model (McIntyre et al., 2002), the Gaines_sensory and Gaines_motor models (Gaines et al., 2018). Each computational model has specific ion channels and membrane characteristics, resulting in differences in propagation speed. Let’s see how this changes for myelinated fibers. This typically takes between one to two minutes to run.

myelinated_diameters = np.linspace(2, 20, 10)   #10 myelinated fibers with diameter ranging from 2µm to 20µm.

## Axon def
y = 0
z = 0

## test pulse
t_start = 1
duration = 0.1
amplitude = 5

t_sim = 5

plt.figure()

myelinated_models = ['MRG','Gaines_motor','Gaines_sensory']
for model in myelinated_models:
    myelinated_speed = []
    print(f"Simulated model: {model}")
    for d in myelinated_diameters:
        L = nrv.get_length_from_nodes(d, 21)
        axon1 = nrv.myelinated(y, z, d, L, model=model)
        axon1.insert_I_Clamp(0, t_start, duration, amplitude)
        ## Simulation
        results = axon1(t_sim=t_sim)
        del axon1
        nrv.rasterize(results, "V_mem")
        myelinated_speed += [nrv.speed(results)]
    plt.plot(myelinated_diameters, myelinated_speed, "o-", label=model)

plt.legend()
plt.grid()
plt.xlabel("diameter ($\mu m$)")
plt.ylabel("speed ($m.s^{-1}$)")

Simulated model: MRG
Simulated model: Gaines_motor
Simulated model: Gaines_sensory

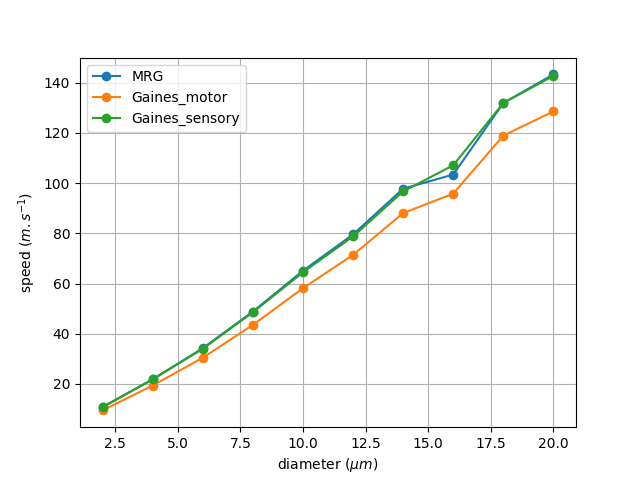

Although not identical, the 3 models have very similar propagation speeds. Indeed, these models are very similar, Gaines’ versions being directly derived from the MRG model. Let’s do the same thing but with unmyelinated models:

unyelinated_diameters = np.linspace(0.1, 2, 10)   #10 unmyelinated fibers with diameter ranging from 0.1µm to 2µm.

## Axon def
y = 0
z = 0
L = 1000

## test pulse
t_start = 1
duration = 0.1
amplitude = 5

t_sim = 5

plt.figure()
unmyelinated_models = ["HH","Rattay_Aberham","Sundt","Tigerholm"]
for model in unmyelinated_models:
    unmyelinated_speed = []
    print(f"Simulated model: {model}")
    for d in unmyelinated_diameters:
        axon1 = nrv.unmyelinated(y, z, d, L, model=model)
        axon1.insert_I_Clamp(0, t_start, duration, amplitude)
        results = axon1(t_sim=t_sim)
        del axon1
        nrv.rasterize(results, "V_mem")
        unmyelinated_speed += [nrv.speed(results)]
    plt.plot(unmyelinated_diameters, unmyelinated_speed, "o-", label=model)

plt.legend()
plt.grid()
plt.xlabel("diameter ($\mu m$)")
plt.ylabel("speed ($m.s^{-1}$)")

Simulated model: HH
Simulated model: Rattay_Aberham
Simulated model: Sundt
Simulated model: Tigerholm

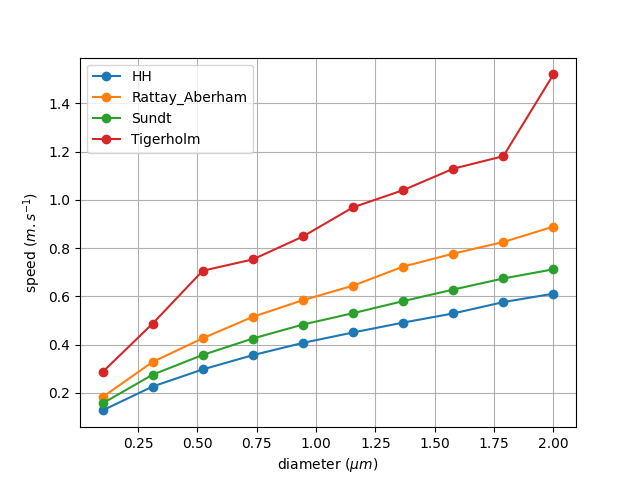

On the other hand, we can see that the differences in propagation speed between the different models of unmyelinated fibers are much more pronounced. As a matter of fact, these different models were developed using different data and for different purposes, which is why they differ so much. These models are described in detail in Pelot et al. (Pelot et al. 2021).
